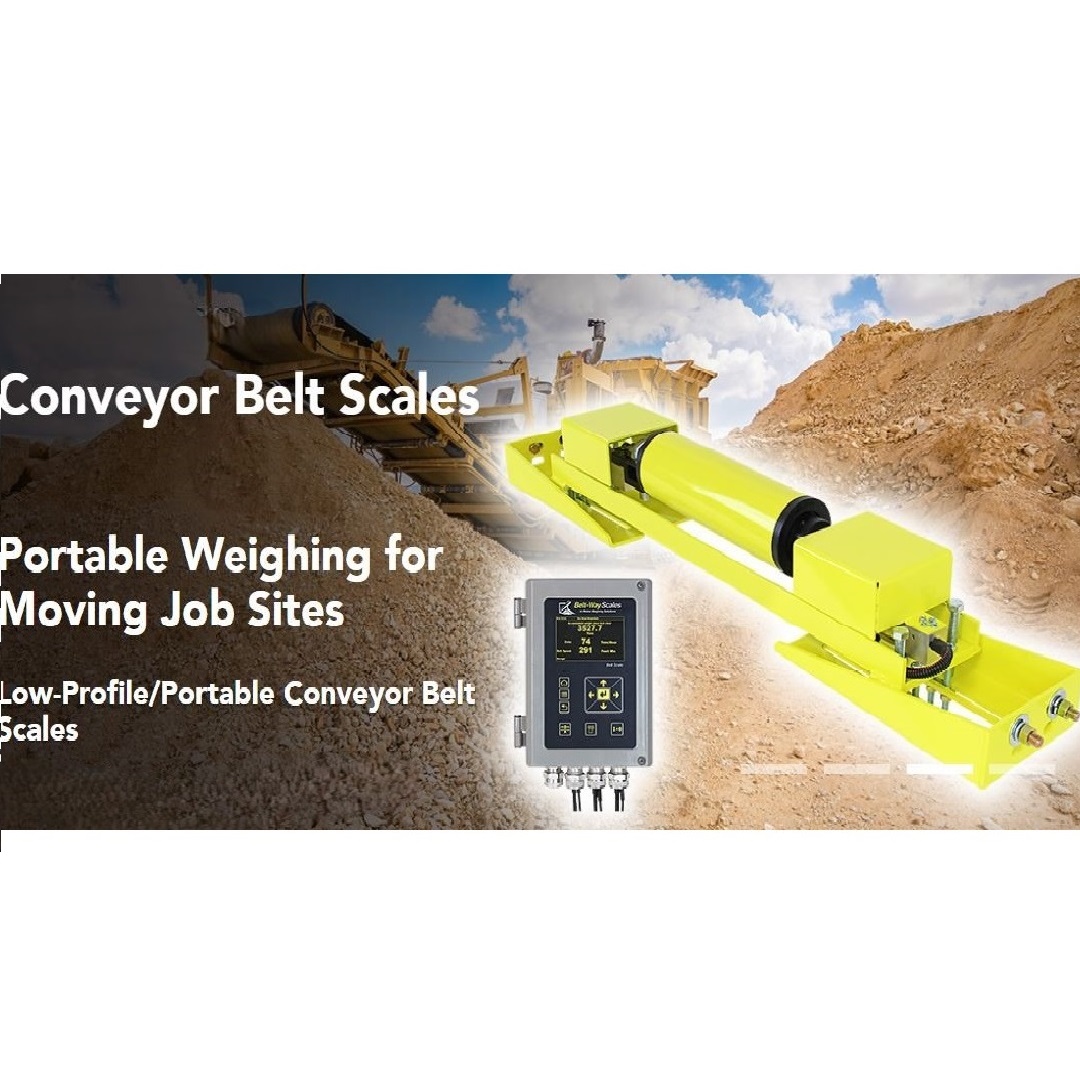

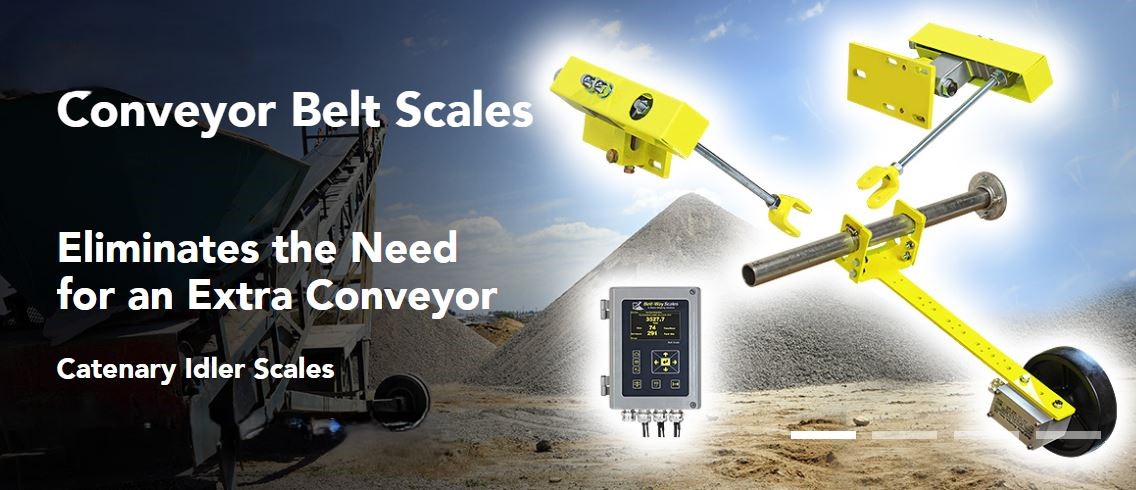

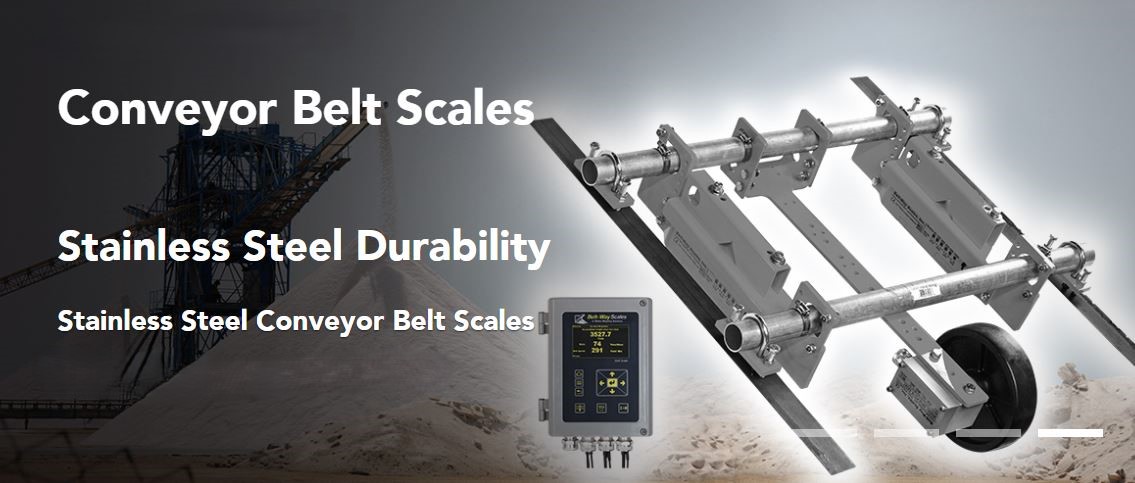

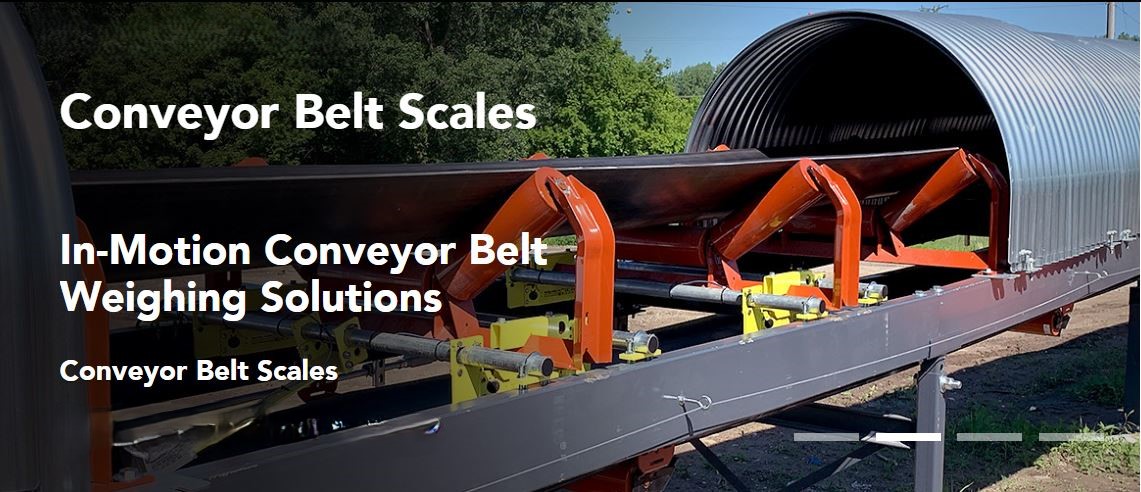

BeltWay Conveyor Belt Scales
These conveyor Belt Scales provide a simple, yet versatile design that fits any conveyor width. Can be installed on portable or stationary scales, provide quick setup, and easy calibration. Conveyor Belt Scales are available in a variety of applications. Can be used in aggregate, agricultural, mining, steel, recycling, and concrete industries. Several models to select from to suit various applications; standard heavy duty, multi- idler, single idler, stainless steel, portable /low profile and for rock / jaw crushers and screening plants.
Features
Features
- Fit Any Width Conveyor
- Easy Installation on Stationary or Portable Scales
- Easy Calibration and Recalibration
- Self-Storing Test Weights Provide Quicker and Easier Calibration
- Load Cell Assemblies are OIML Certified
- Weatherproof Integrator and Electronics
- RS-232 Communication with Belt-Way Integrator
- Remote Display Shows Real-Time Information
Specifications
Calibration: Automatic tare weight determination, dynamic test and recalibration, automatic zero adjustment
Alarms: Load cell failure, belt speed zero
Communications: Ethernet port supports Modbus/TCP; USB port available for data download and firmware updates
Display: Large color graphic display with multi-language support
Electrical Ratings: 12-30 VDC, 24 VDC 2.25A Max, AC Power Option: Input: 100-240 VAC, 1A Max, 50-60Hz, Output: 24 VDC, 2.25A Max
Operating Temp.: -20 C to +45 C (-4 F to +113 F)
Load Cell Inputs: Eight independent load cell inputs, 9 VDC-250mA nominal supply, +2mV/VDC nominal signal, 350 OHMS of load cell resistance
Memory: 1,080 hours of internal memory storage
Online Reporting: Each Integrator can connect to Plant Connect
