Bird Scale – Automatic Poultry weighing system
ACCURATE, REAL-TIME BIRD WEIGHT MANAGEMENT
Providing 97% precision in flock average weight and CV over the broiler life cycle.

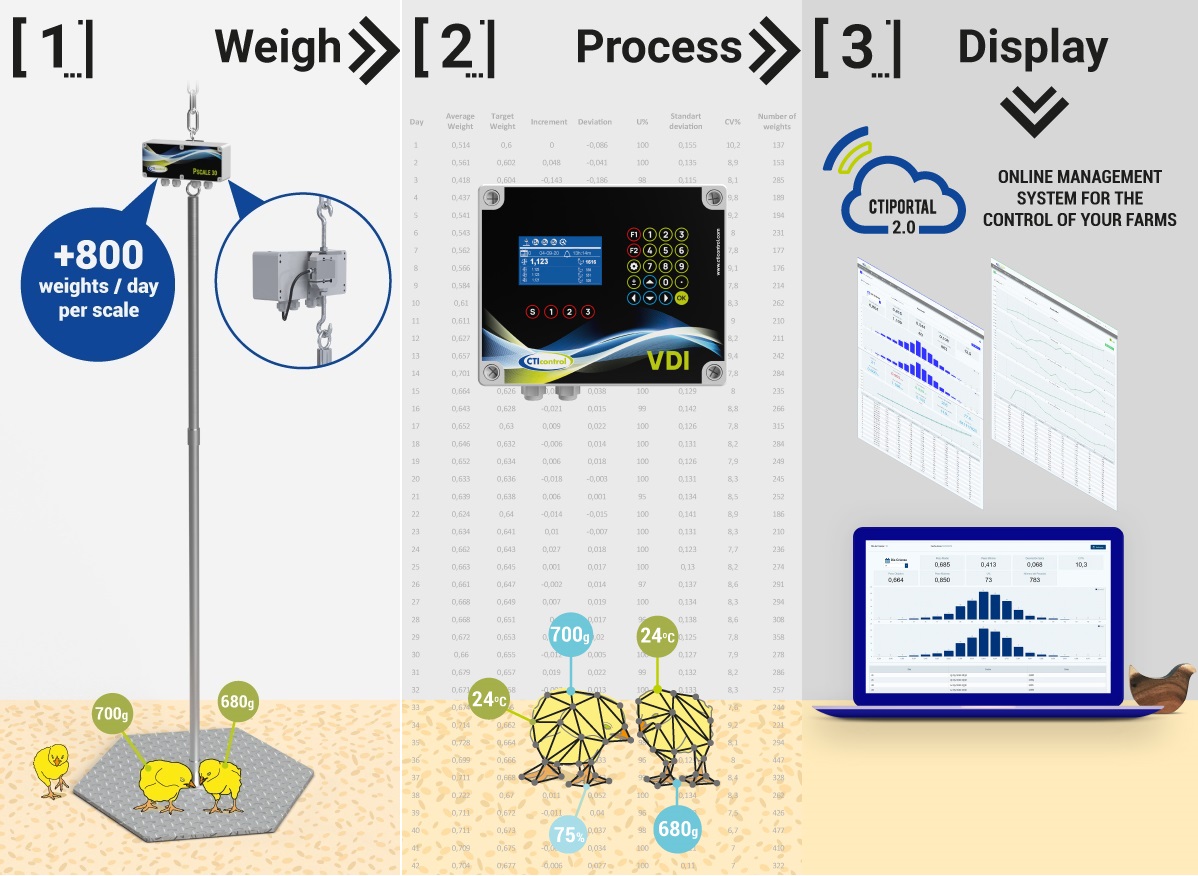

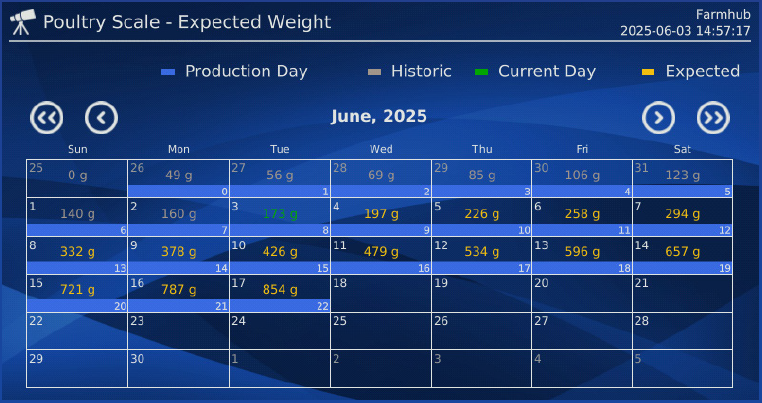

Automatically recording average weights, daily gains and standard deviation.
Cost, time and labour saving, highly efficient unmanned poultry weight monitoring system.
Eliminates manual weighing, reducing labour, stress and added costs.

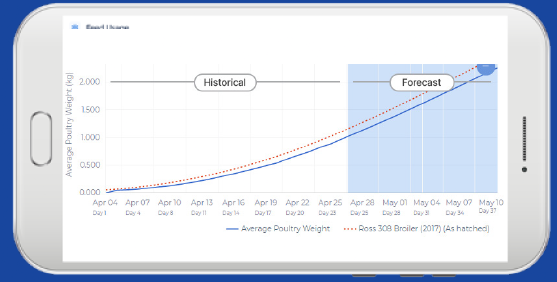

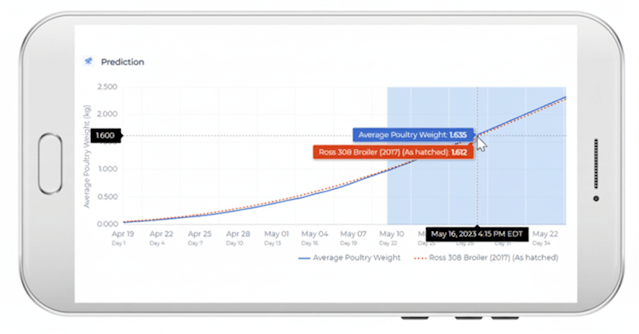

optional connection to online portal to view and monitor above data real time and control from anywhere with access.
Features

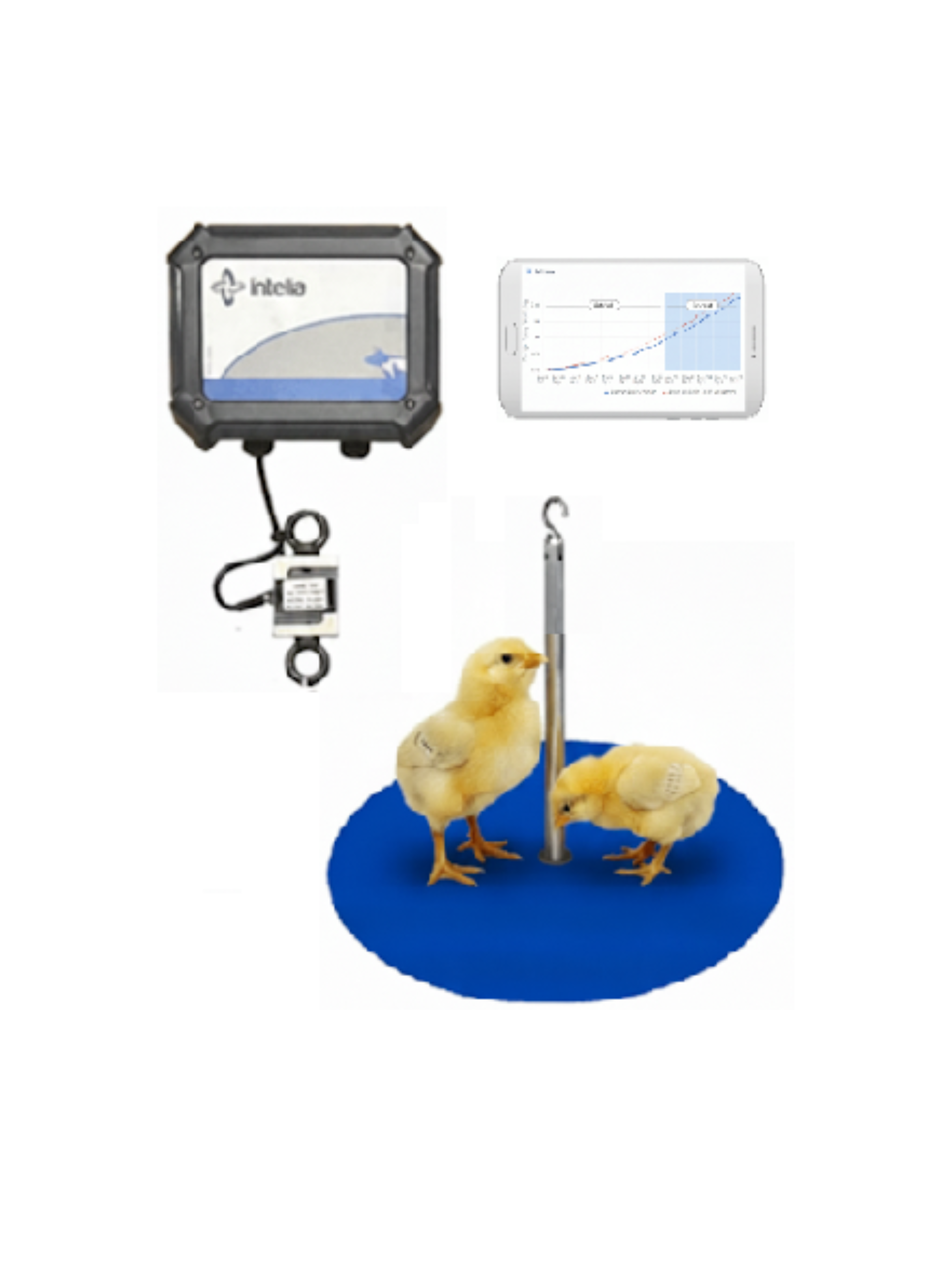

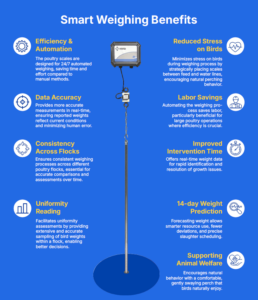

Intelia Bird Scale for automatic Weighing & Reporting
- Smart electronics for accurate weight recording
- 20″ diameter steel platform
- Non-skid coating or surface
- Easy to install and set up
- Steel telescopic hanging rod
- Outstanding accuracy
- Exceptional weighing speed
Measurement Range
• 35 g to 3 kg
• Accuracy (depending on bird weight):
• ±2 g for weights starting at 35 g
• ±20 g for weights up to 3 kg
Hanging Height
• Easily adjustable to recommended 5 cm above the
floor using a chain link connected to the load cell hook.

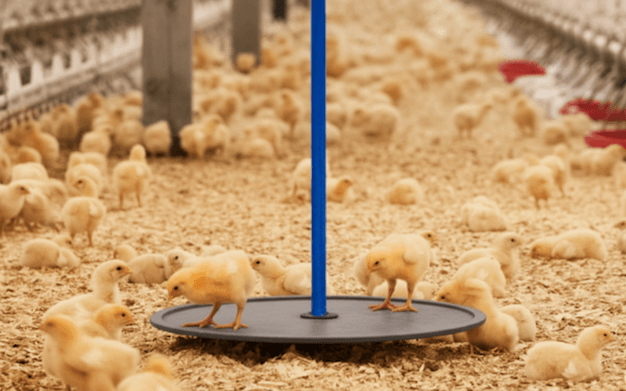

Platform
• 51 cm diameter steel plate
• Covered with a 10 kg non-skid coating for stability
and bird-friendly access
Weighing Area Coverage
• One scale covers approximately 500 m² of bird area.
Connection
• Daisy-chain wiring with 4-wire, 22 AWG cable
starting at FarmHub
Installation & Setup
• Quick and simple—no special skills required
Resilient Accuracy
• Measurements remain reliable despite dirt build-up.
