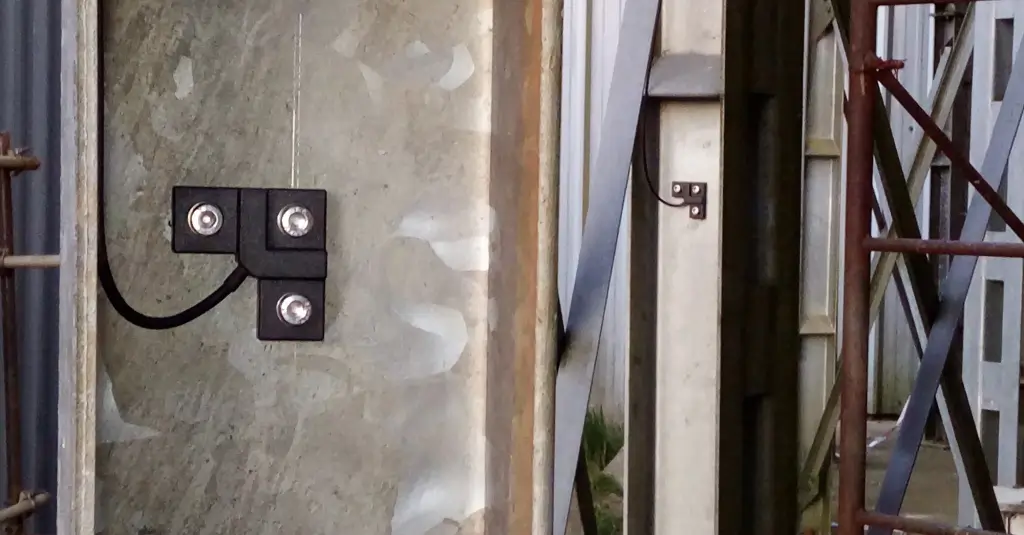

The Bolt-on strain sensors have been designed to measure tensile and compressive bending stresses ranging from 50 to 1100 micro-strain, for use in applications including vehicle load monitoring, structural health monitoring, silo weighing, hopper weighing, vessels, and specialist engineering projects.

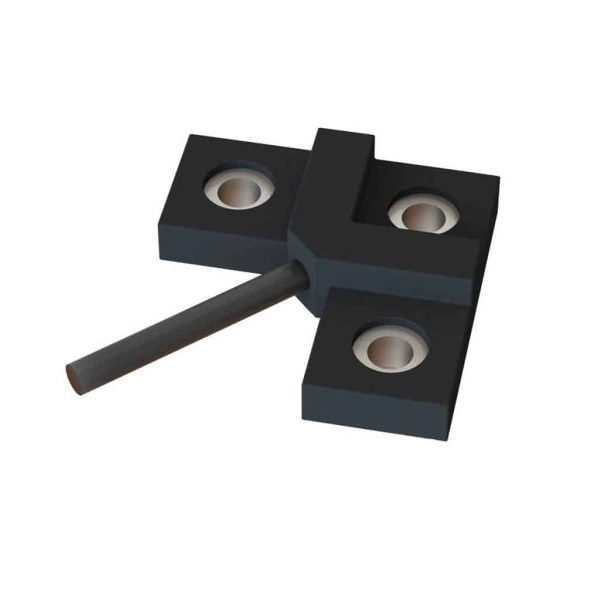

The series 460, 3-hole bolt-on strain sensor has a unique design, eliminating the temperature effect on bending and strain of the application, this enables the sensor to perform in almost any environment and weather.

Datum multi-element bolt-on strain sensors have been developed to provide the rugged and robust benefits associated with a complex strain gauge solution.

• • Rated Strain Range: 50 – 1,100 micro-strain
  • Rated Output: 1.5mV/V for 1,000 micro-strain (nominal)
  • Repeatability: 0.1% FSD
  • Environmental Protection: IP67
  • Operating Temperature: -20ºC to +80ºC
  • 60mm x 60mm foot print ( 3-hole model)
