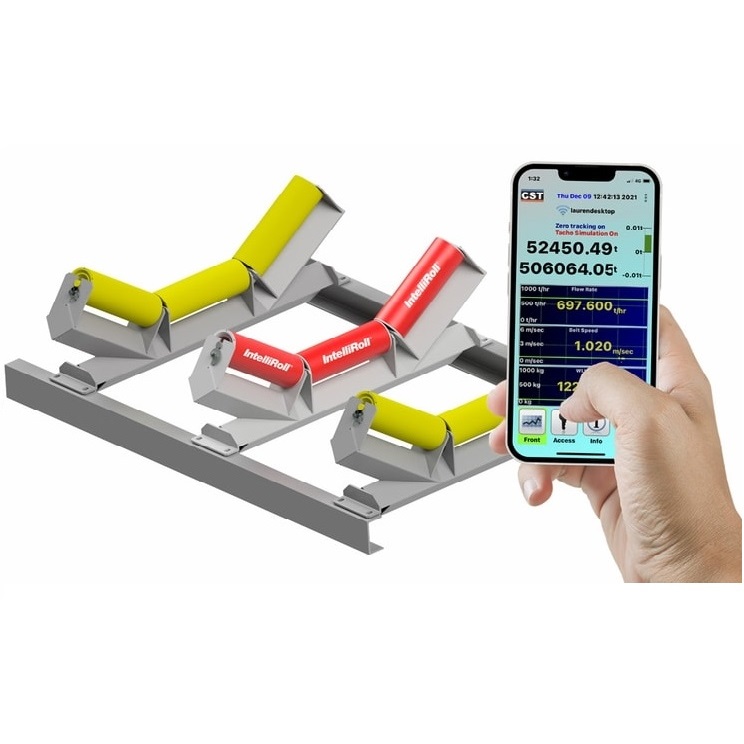

Intelliroll Wireless Belt Weighing Roller Unit
No cables, no major mechanical modification, just replace the idler roll with intelliroll- The most simple and economical belt weighing solution with advanced features.
A complete fully functioning wireless belt weigher enclosed in a single roll. It fits in to most conveyor belts.
IntelliRoll generates its own power from belt travel. There is no separate local integrator enclosure or display, so no wiring is required.
IntelliRoll transmits total tonnes, flow rate, belt speed and other parameters by Wi-Fi to the client’s site network or your mobile phone/portable device.
IntelliRoll is a low-cost, low maintenance belt weigher, comes in 150mm diameter or 178 mm diameter.
Features
Accuracy : 2% to 5% depending on application engineering
Features:
- Communicates directly to site PLC, your mobile phone or portable device
- 32 Bit ARM M4 Processor
- Dual 24 bit sigma-delta ADC’s for weight measurement
- 3 Axis Accelerometer
- Temperature Sensor
- Built in Tachometer
- Energy Harvesting Generator
- Battery Operation when belt stopped (8 hours)
- Belt Speed 0.6 to 6 m/s
- Wifi Communication to User
- XBee Mesh network roll to roll communication
- Pre-calibrated with built in strain gauges
- Roll lengths and slot details can be made to suit clients’ specific site requirements
- IntelliRoll may be nested such as three in a trough or over several consecutive idlers for improved accuracy performance
- They communicate internally by WiFi to each other, and one roll takes the lead role for external communication.
- Each IntelliRoll is application engineered to match certain site requirements, including roll face length, belt speed and load.
