Stop Invisible Losses. Maximize Packout Yield.

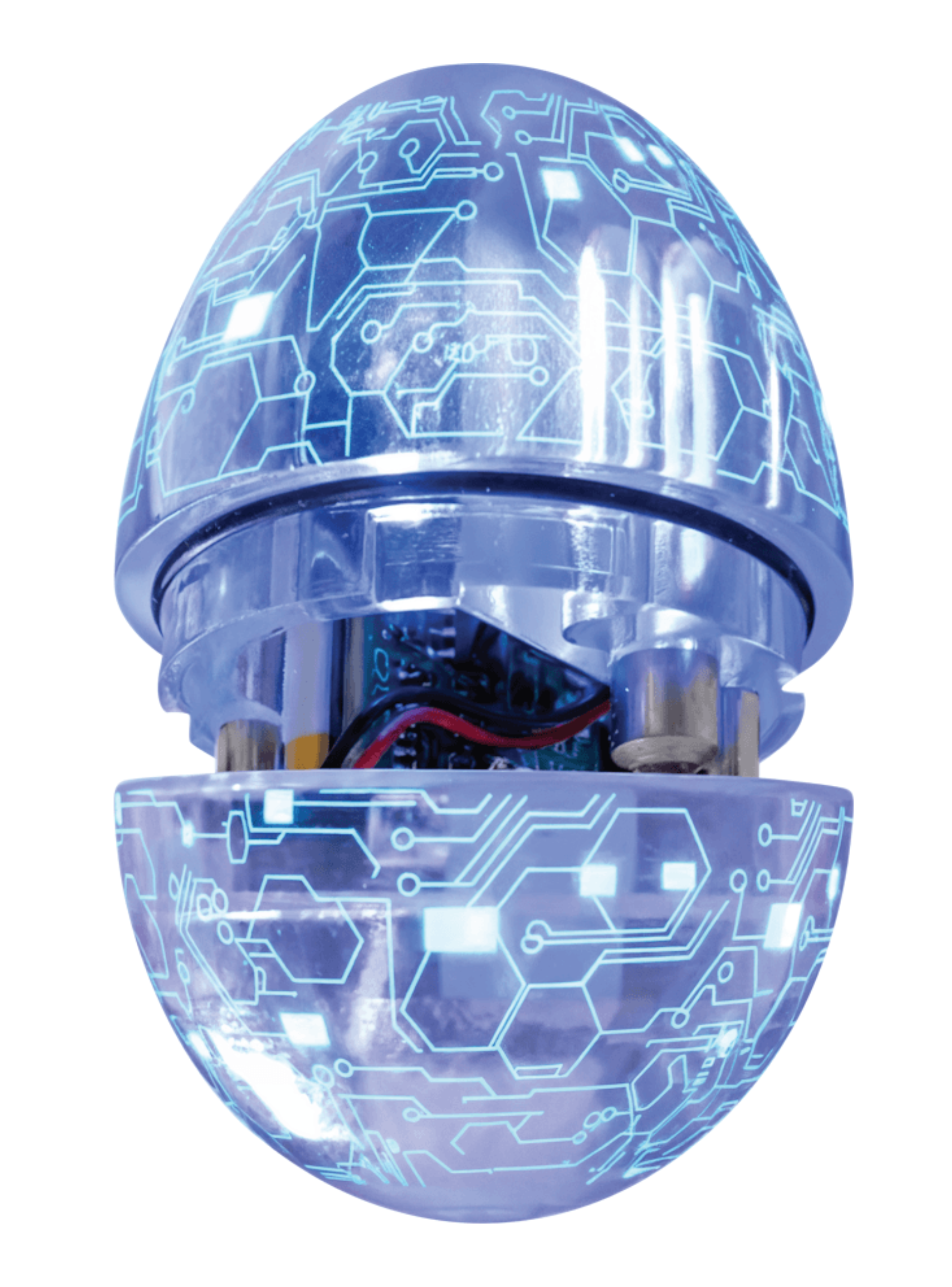

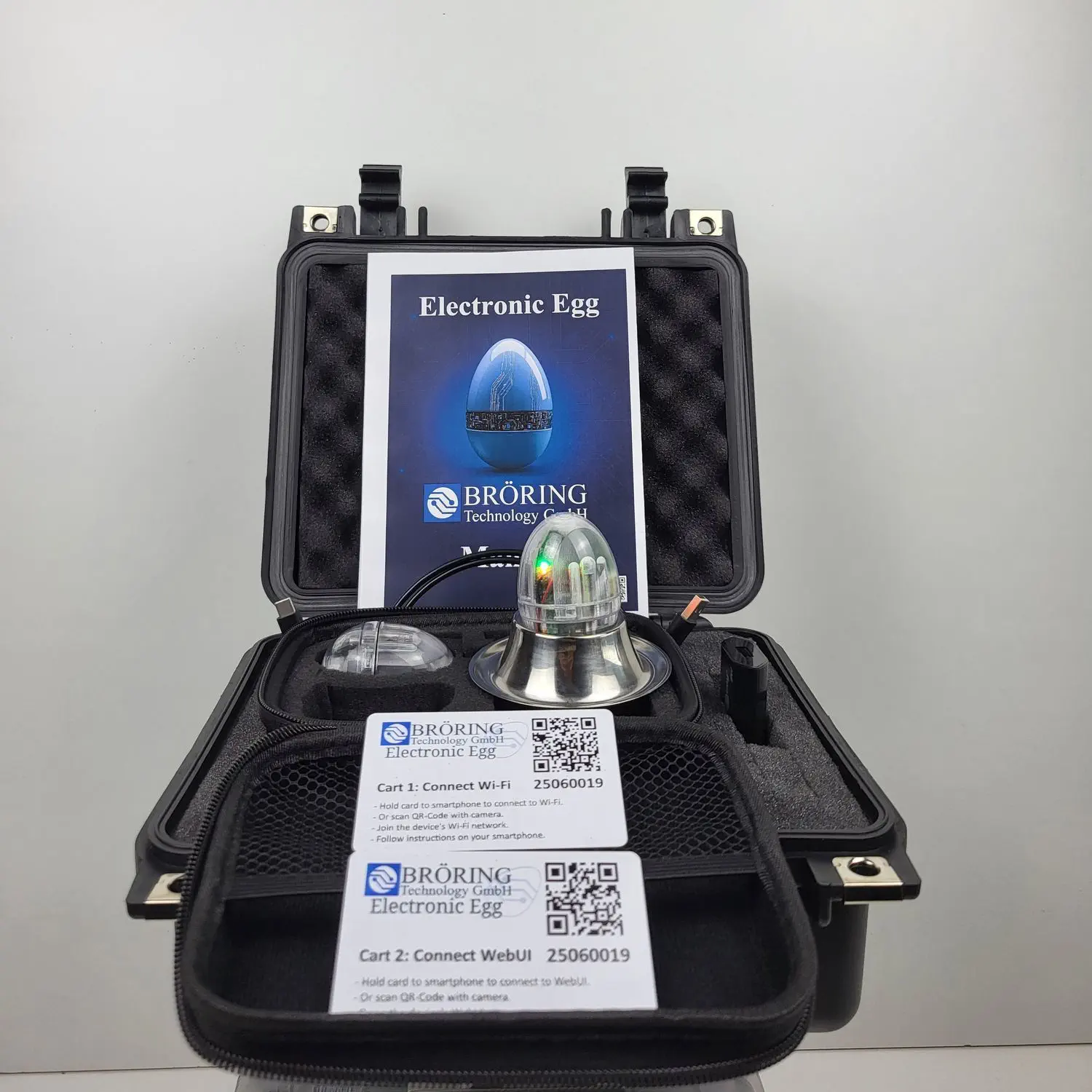

The Bröring Electronic Egg is a German-engineered, reusable data logger designed to pinpoint hidden impact zones across your entire processing, grading, and transport lines.

By precisely mimicking the weight, size, and physical behavior of a real egg, it travels seamlessly alongside your live production to identify micro-shocks and cumulative mechanical stress before they turn into costly breakages.

  • Realistic 3D Simulation: Travels smoothly through washers, packers, and Moba grading systems under normal live operating conditions—no production downtime required.

  • Tri-Axial Shock Detection: Captures real-time forces, vibrations, rotations, and tilts in three dimensions to reveal cumulative shell weakening.

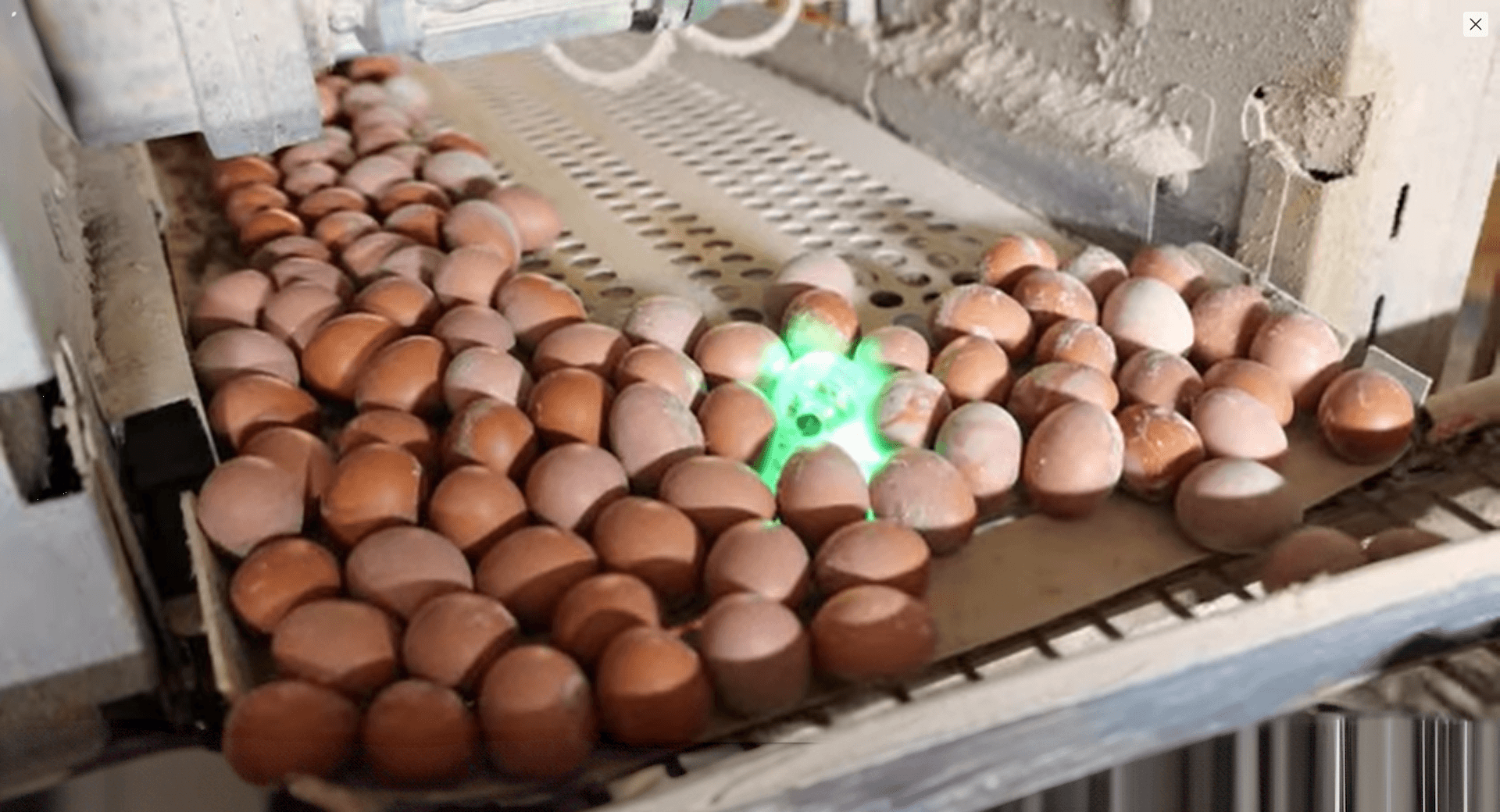

  • Instant Visual Feedback: Integrated on-egg LED indicators (Green/Yellow/Red) immediately alert your maintenance mechanics to peak loads exceeding safe limits.

  • Zero-Software Wireless Access: Built-in web server connects directly via 2.4 GHz Wi-Fi to any smartphone, tablet, or PC browser—no apps or local software installations needed.

  • Actionable Data & Compliance: Instantly review live g-force charts, compare historical measurements, and export clean PDF or CSV reports for process optimization.

The Bottom Line for NZ Producers: A mere 1% reduction in your breakage rate can reclaim tens of thousands of dollars in annual profit. Turn invisible damage into visible, targeted machine adjustments.

Category

Features

Technical specifications
Measurement Range: 0 to 25.4 G
Sampling Rate:            5376 measurements per sec.
Storage Rate:                10 measurements per sec
Storage Capacity:         10 hours  (at 10 bytes per second)
Operating Time:           Up to 4 hours on a full charge
Battery:                          440 mAh, USB-C-Port
Weight:                           65g
Dimensions:                  60mm x 44mm
Wi-Fi Connection:        “Electronic Egg (XXXXXXXX)” (2.4 GHz 802.11 b/g/n)
LED Indicators:             Green (light impact) | Yellow (moderate impact)  | Red (strong impact)

Why Objective Impact Measurement Matters

Traditional visual checks and manual machine calibration only show you the damage after it has already happened. The Bröring Electronic Egg replaces guesswork with precise, repeatable, and objective data.

  • The Threat of Cumulative Stress: Eggshell failure is rarely caused by a single event. In modern automated processing, micro-cracks form from a combination of minor vibrations, small shocks, and rough conveyor transitions. Small shocks accumulate, silently destroying shell integrity.

  • Catching Invisible Damage: Hairline fractures often start long before the egg reaches the final packer. If an egg is weakened early in the line, it will inevitably burst during washing or grading, causing messy clean-ups and machinery downtime.

  • Data-Driven Optimization: By mapping the exact mechanical stresses across your entire facility, your maintenance team can make highly targeted adjustments to machine timings, conveyor speeds, and rubber dampeners.

How the Electronic Egg Works

Designed for seamless integration into active poultry operations, the Bröring Electronic Egg records authentic handling conditions without requiring you to stop your production lines.

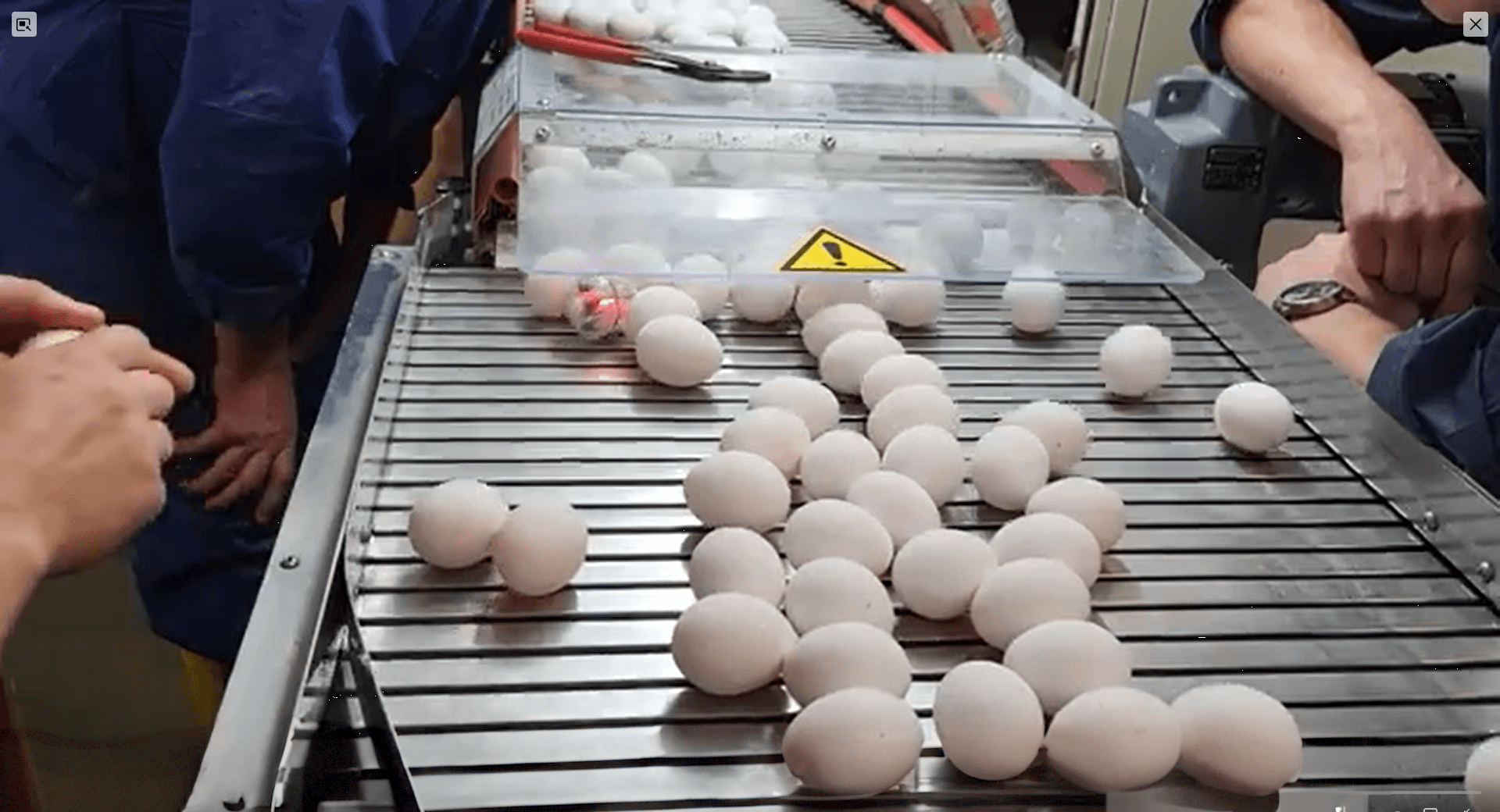

1. Place Into the Live System:No Downtime Required.

Simply place the Electronic Egg directly onto the conveyor belt or accumulator alongside real eggs. Because its physical size, weight, and center of gravity perfectly match a real egg, it behaves exactly like your live product.

2. Continuous 3D Measurement:Real-Time Data Capture.

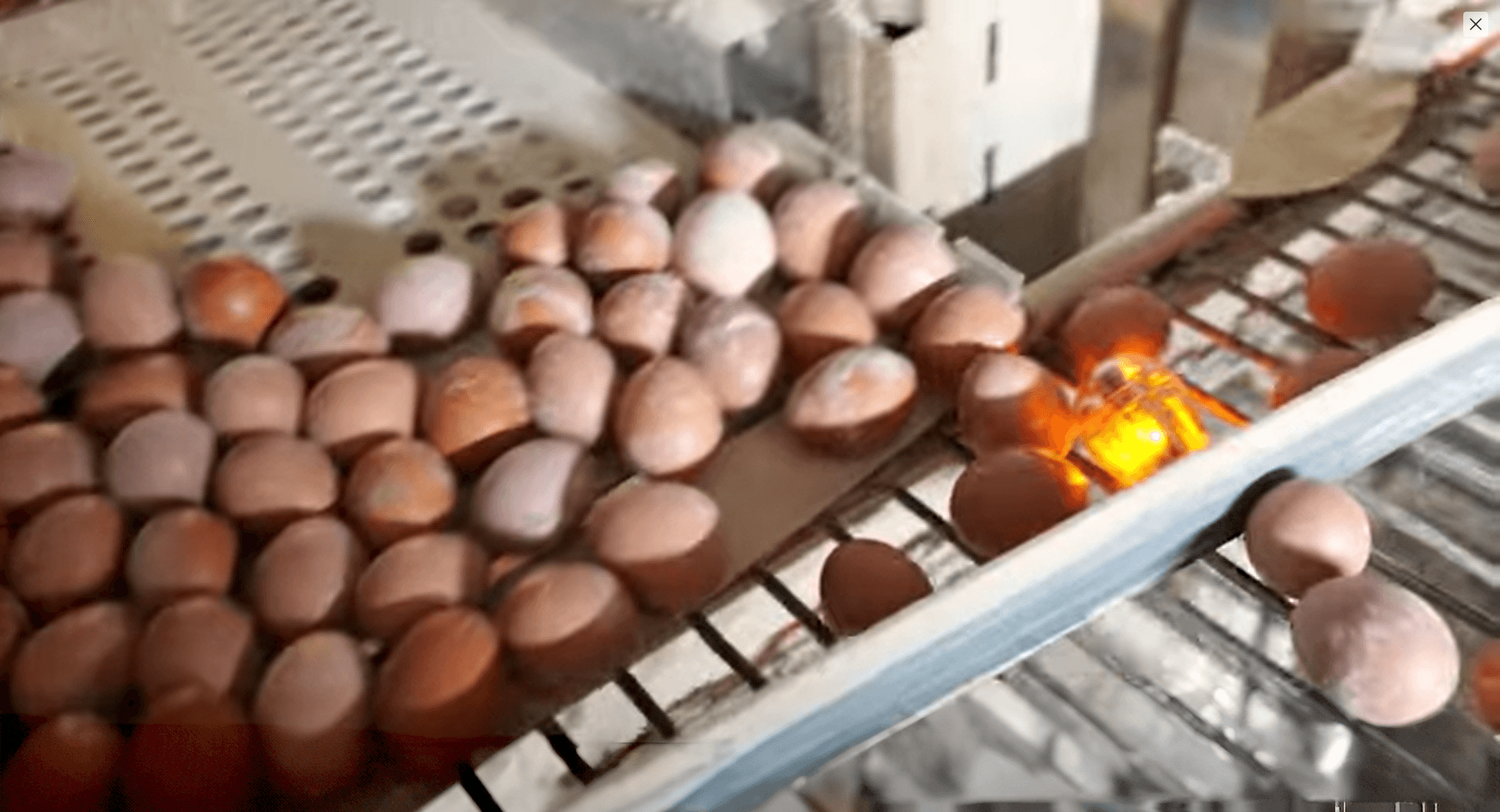

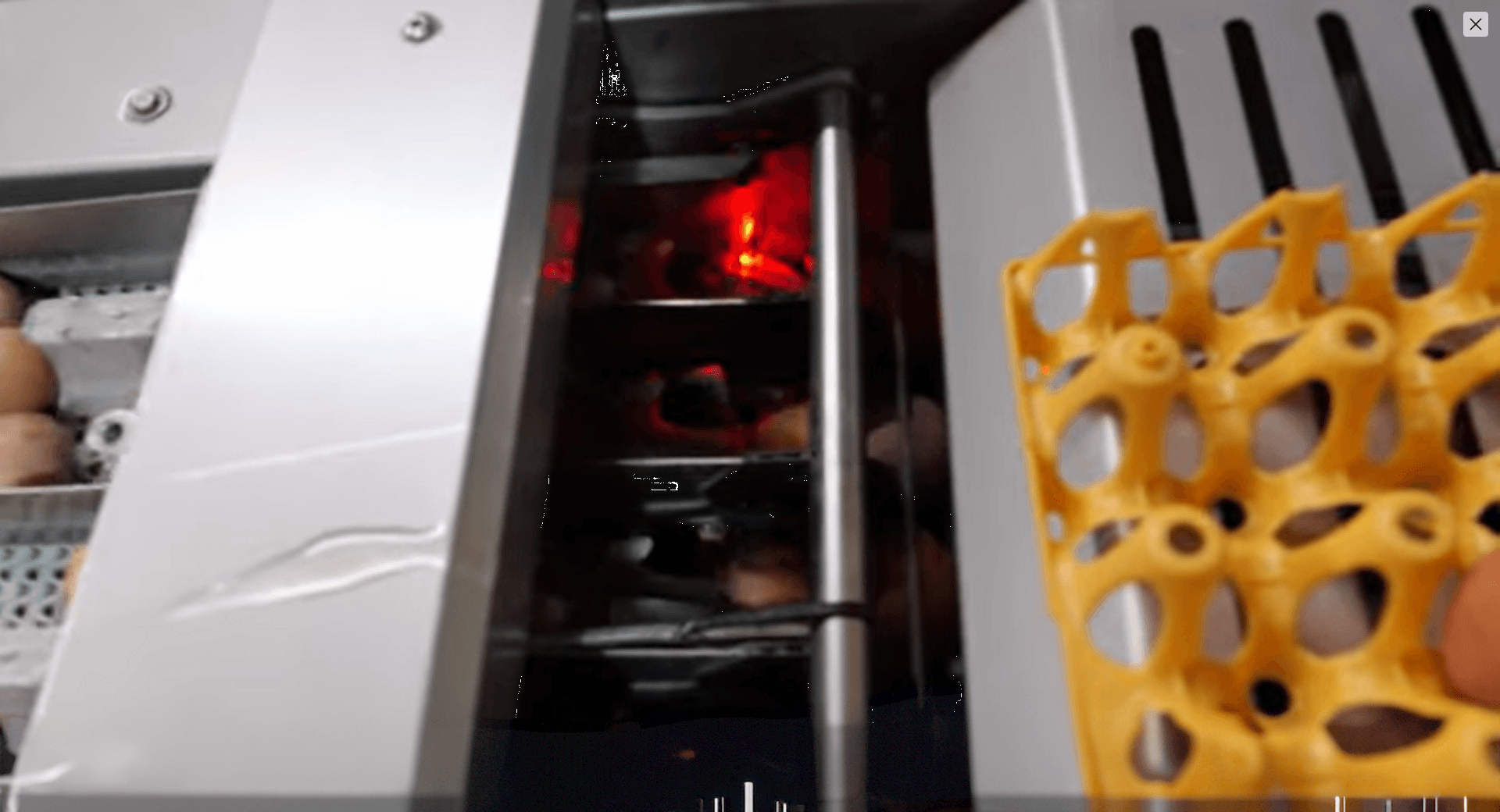

As the device travels through the wash, candling, and grading systems, it logs tri-axial shocks, vibrations, rotations, and tilts. Critical peak loads trigger the onboard LED indicators, giving mechanics an immediate visual alert on the factory floor.

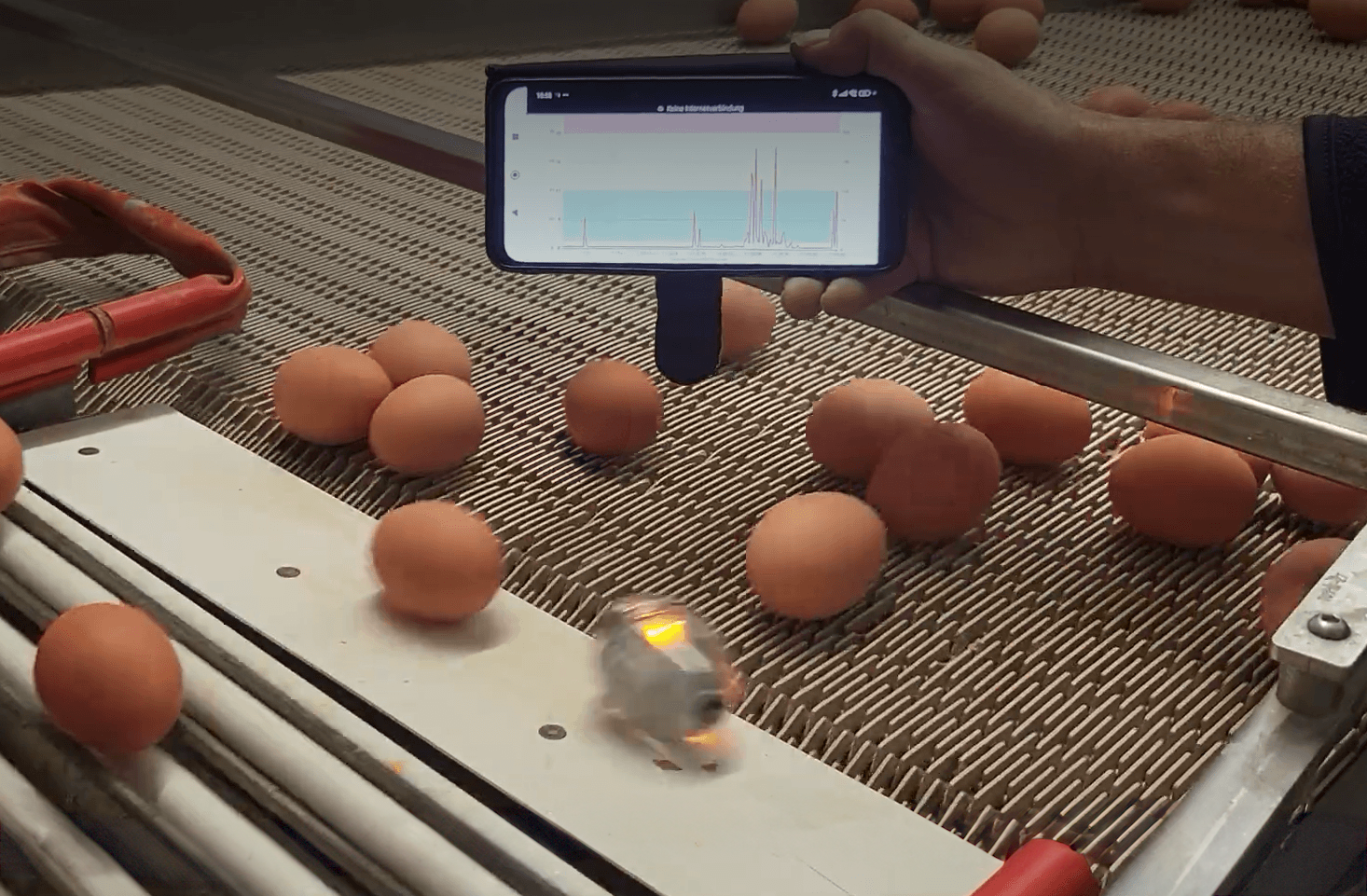

3. Wireless Data Extraction:Built-in Web Server.

Once the run is complete, the egg hosts its own secure Wi-Fi network. Connect using any standard browser on your smartphone, tablet, or PC. There is no software to install and no subscription fees.

4. Analyze & Optimize:Targeted Line Calibration.

Review the visual impact graphs to pinpoint problem transitions or high-drop zones. Make your adjustments, rerun the egg, and instantly verify that the physical stress on your product has dropped back into the safe zone.

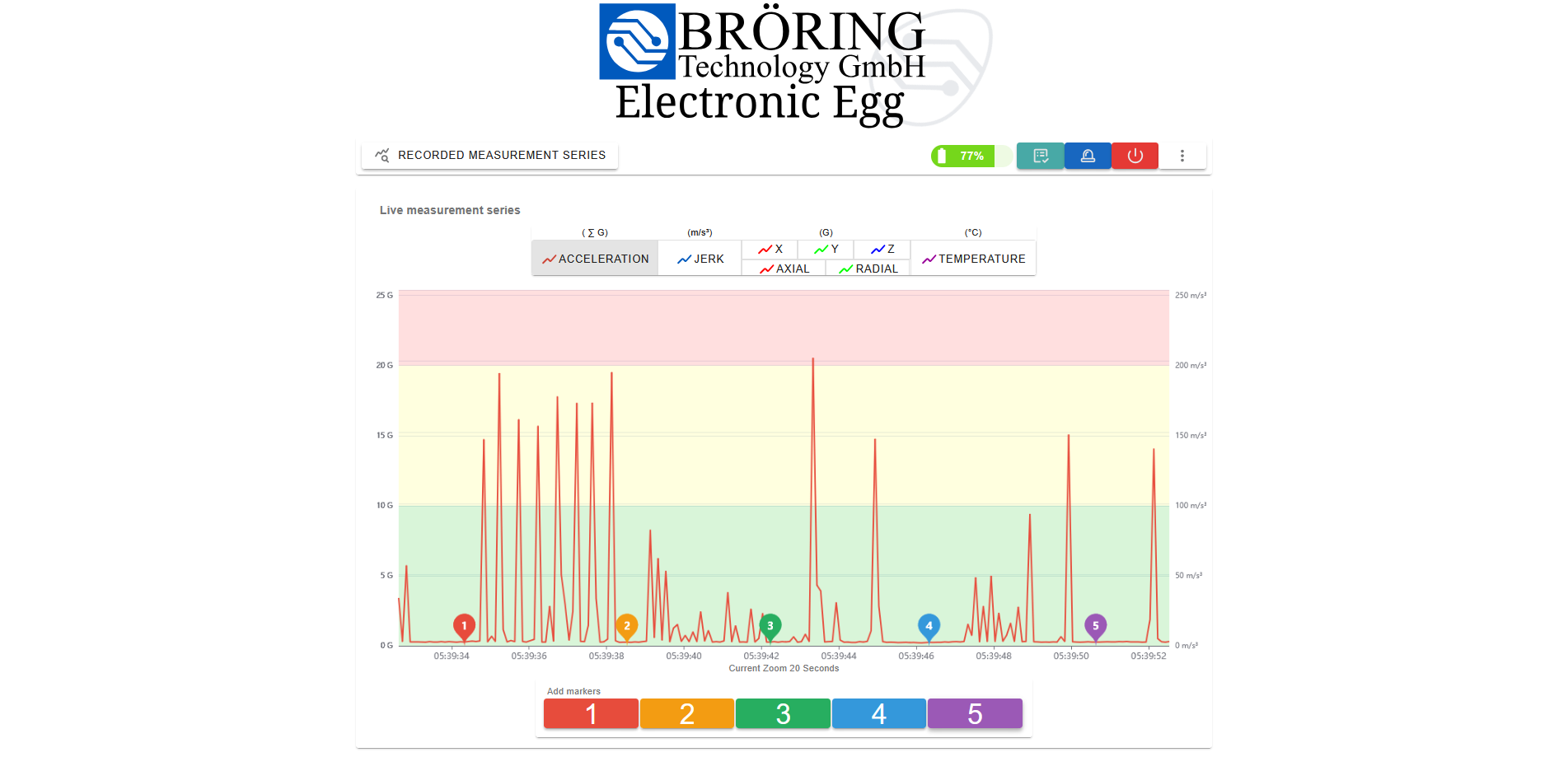

Diagnostic Insights & Data Analysis

The underlying software converts raw sensor data into clear, actionable engineering insights. This allows operations managers to audit lines and maintain high standards across shifts.

  • Precision G-Force Mapping: Easily isolate peak loads (such as drops exceeding critical thresholds like $15\text{g}$) from general, low-level conveyor vibration.

  • One-Click Compliance Export: Generate professional PDF summary sheets for quality control audits or export raw CSV data into Excel for deeper multi-line comparisons.

  • Cross-Platform Simplicity: Optimized to display beautiful, interactive charts flawlessly on everything from a rugged factory-floor tablet to an office desktop.
